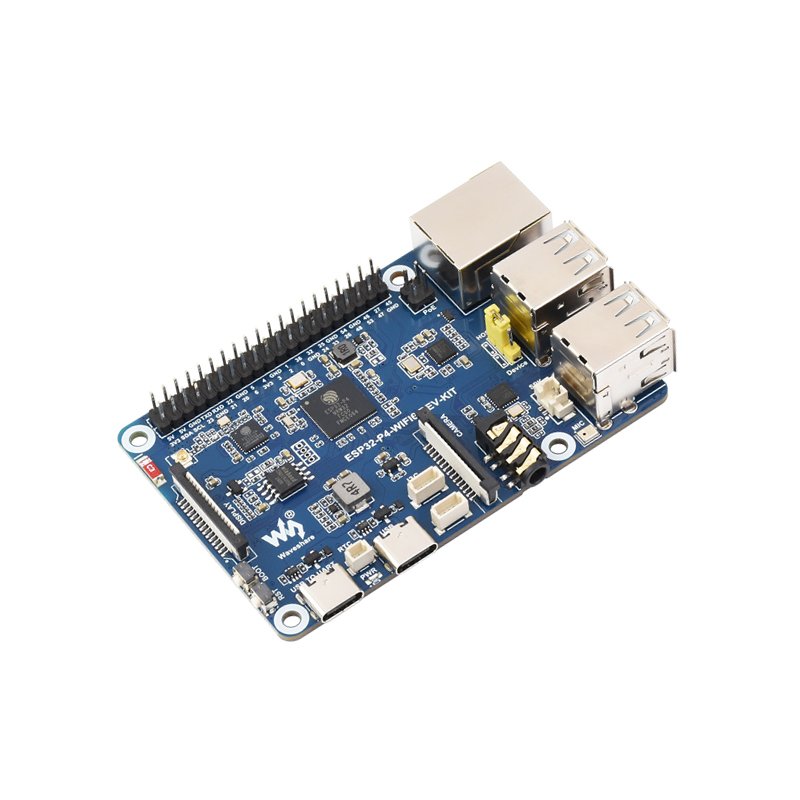

Waveshare ESP32-P4-WIFI6-DEV-KIT High-Performance Development Board

Waveshare ESP32-P4-WIFI6-DEV-KIT High-Performance Development Board - Image 3

Waveshare ESP32-P4-WIFI6-DEV-KIT High-Performance Development Board

₹2,249.00

Sort Description :

Processor: RISC-V 32-bit dual-core + single-core
Wireless: Wi-Fi 6 (2.4GHz) & Bluetooth 5/BLE 5 via ESP32-C6
Memory: 32MB PSRAM, 16MB Flash
Interfaces: USB OTG, Ethernet, MIPI-CSI/DSI, I2C, I3C, SPI
Security: Hardware encryption, secure boot, access protection

The Waveshare ESP32-P4-WIFI6-DEV-KIT is a high-performance development board built around the ESP32-P4 and ESP32-C6 chips, designed for next-generation IoT, AI, and edge computing applications. Supporting Wi-Fi 6 and Bluetooth 5/BLE 5, it ensures faster and more stable wireless communication. With powerful RISC-V dual-core + single-core processors, integrated security features, and rich interfaces like MIPI-CSI, MIPI-DSI, USB OTG, Ethernet, and SDIO 3.0, this board is ideal for developers building intelligent HMI, multimedia, and connectivity projects. Onboard 32MB PSRAM, 16MB Flash, camera/display interfaces, audio headers, and PoE support expand its versatility. Whether for AI speech interaction, image processing, or IoT prototyping, this board provides flexibility, security, and performance at an affordable price.

Features:

Powered by ESP32-P4 with RISC-V dual-core and single-core processors
Integrated ESP32-C6 for Wi-Fi 6 & Bluetooth 5/BLE 5 connectivity
32MB PSRAM + 16MB Flash onboard for smooth multitasking
Rich HMI interfaces: MIPI-CSI, MIPI-DSI, I2C, I3C, SPI, I2S
USB 2.0 OTG, Ethernet, SDIO 3.0, TF card slot for expansion
Onboard microphone, audio jack, speaker header for multimedia apps
Security features: Secure Boot, Flash Encryption, TRNG, Key Management
PoE header support for network + power via single cable

Package Includes:

1 x Waveshare ESP32-P4-WIFI6-DEV-KIT High-Performance Development Board 1 x 8Ω 2W speaker 2 x Connecting Cable

Item Type:	Development Board
Model No.:	ESP32 P4 WIFI6 DEV KIT
RAM Capacity:	32MB PSRAM + 768KB HP L2 + 32KB LP SRAM
ROM Capacity:	128KB HP ROM + 16KB LP ROM
Processor Type:	RISC-V 32-bit Dual-Core + Single-Core
Microcontroller:	ESP32-P4
Storage	16MB NOR Flash
Clock Speed	Up to 400 MHz
Core:	Dual-Core + Single-Core
CPU	High-Performance MCU with Image & Voice Processing
Additional:	Wi-Fi 6 (2.4GHz) & Bluetooth 5/BLE 5, USB 2.0 OTG, Ethernet, PoE Header, MIPI-CSI Camera Interface, Onboard Microphone, Audio Jack, 40-Pin GPIO Expansion
Length (mm):	90
Width (mm):	55
Height (mm):	16
Weight (g):	41
Shipping Weight	0.065 kg
Shipping Dimensions	11 × 8 × 3 cm

1 Year Warranty

This item is covered with a supplier warranty of 1 year from the time of delivery against manufacturing defects only. In case of manufacturing defects or issues, we will replace the part after warranty confirmation by our technical team, but we won’t offer refunds or replace the entire product.
