- Red – Positive
- Brown – Negative
- Orange – Signal
Features:
- Gear Type: Metal gear
- Servo Plug: JR (Fits JR and Futaba)
- Servo arms & screws included, and fit with Futaba servo arm
- It’s a universal “S” type connector that fits most receivers, including Futaba, JR, Hitec ,GWS, Cirrus, Blue Bird, Blue Arrow, Corona, Berg, Spektrum.
- CE & RoHS approved
- We have upgraded our servo gear set and shaft to aluminum 6061-T6. It is stronger and lighter than copper.
Package Includes:

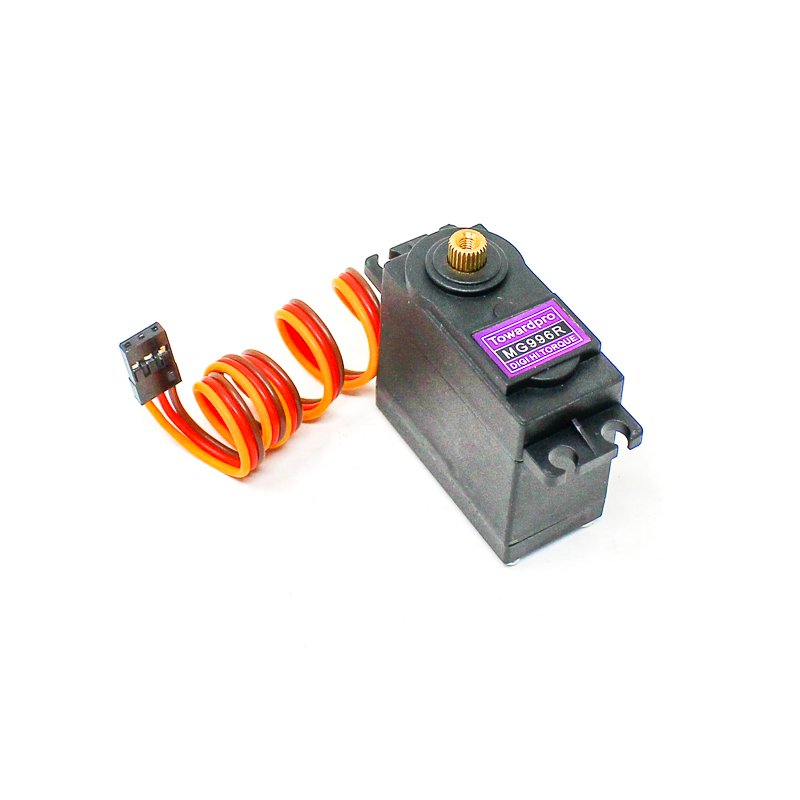

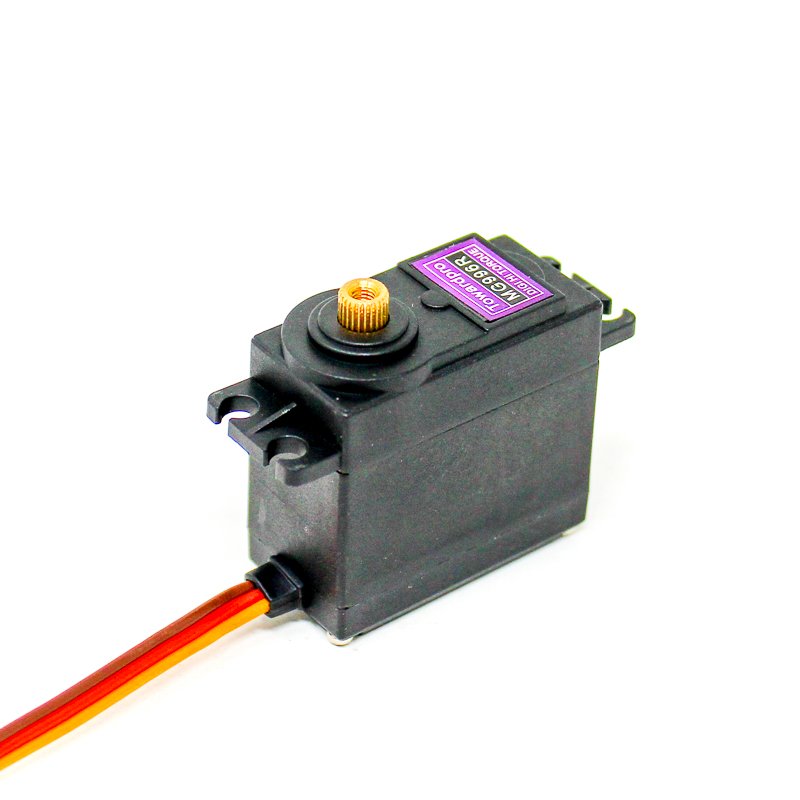

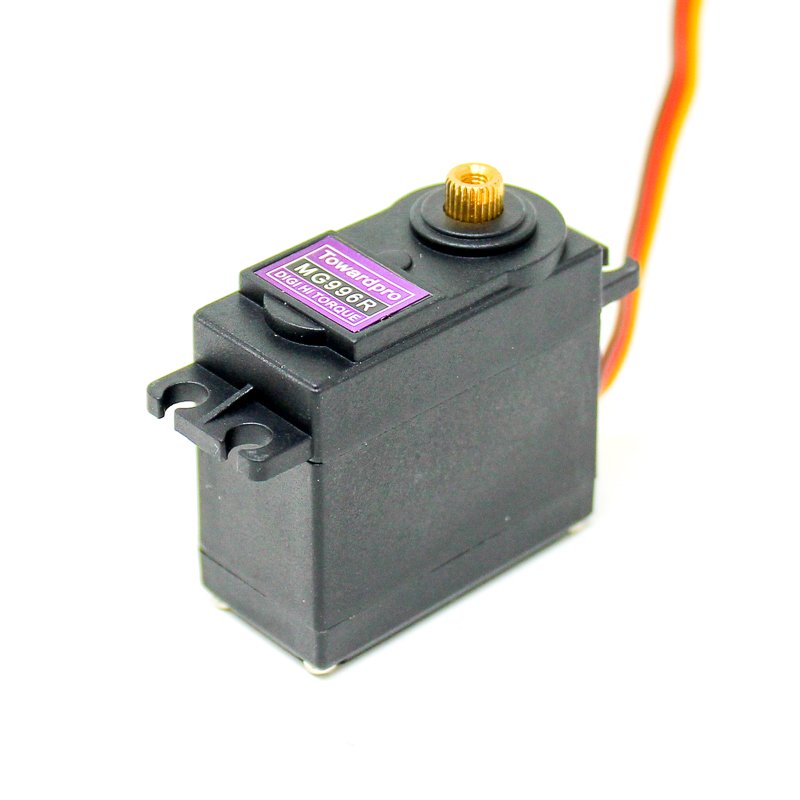

1 x TowerProTowardPro MG996R Digital High Torque Servo Motor and Accessories Parts(as shown in the image)| Item Type: | TowerPro Servo Motor |
| Model Series: | MG Series |
| Torque Rating (kg-cm): | 9.4 to 11 |
| Model No.: | MG996R |
| Operating Voltage (VDC): | 4.8 ~ 6.6 |
| Operating Speed @4.8V | 0.19sec/60° |
| Operating Speed @6.6V | 0.15sec/60° |
| Stall Torque @ 4.8V (Kg-Cm) | 9.4 |
| Stall Torque @6.6V (Kg-Cm) | 11 |
| Operating Temperature (°C): | 0 to 55 |
| Gear Type | Semi-Metal |
| No. of Teeth: | 25 |
| Length (mm): | 40 |
| Width (mm): | 19 |
| Height (mm): | 41 |
| Weight (g): | 56 |
| Shipping Weight 0.059 kg | Shipping Dimensions 5 × 3 × 5 cm |
15 Days Warranty
This item is covered with a standard warranty of 15 days from the time of delivery against manufacturing defects only. This warranty is given for the benefit of Robu customers from any kind of manufacturing defects. Replacement will be done against manufacturing defects.
What voids warranty:
If the product is subject to misuse, tampering, static discharge, accident, water or fire damage, use of chemicals & soldered or altered in any way.
