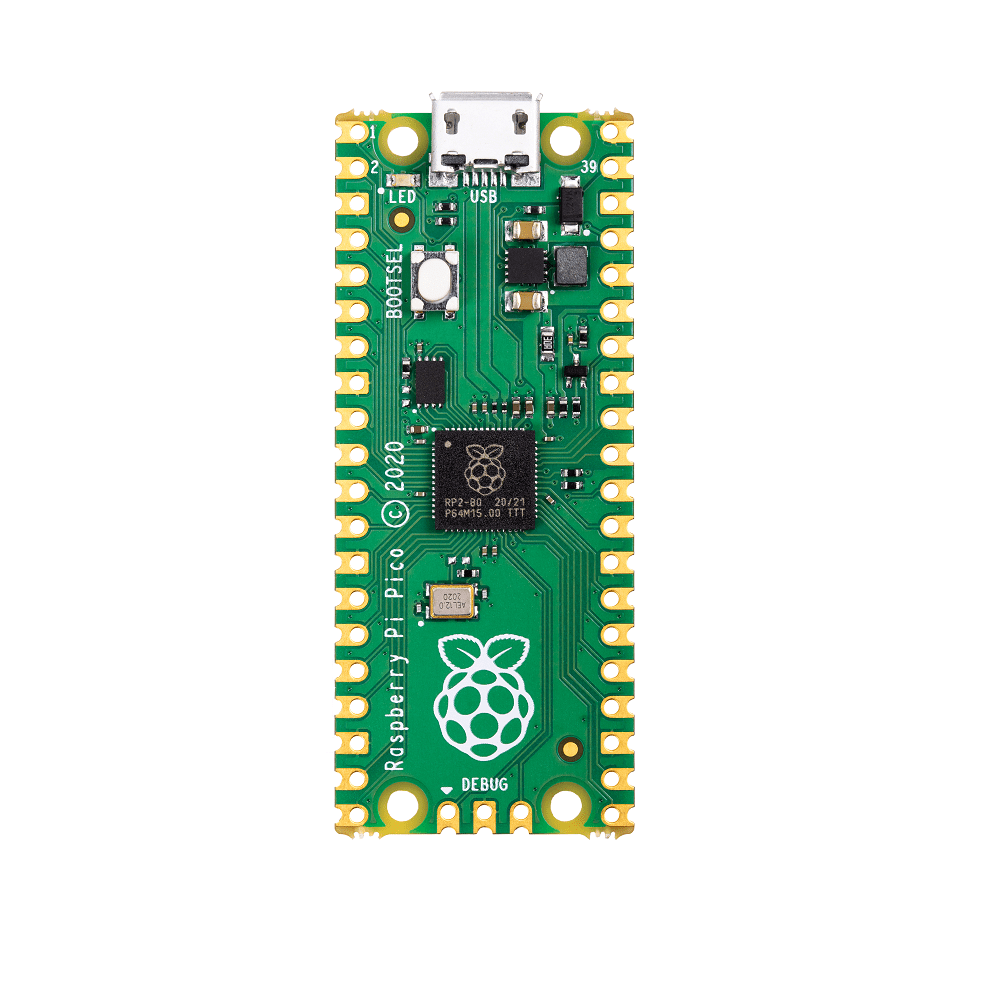

Raspberry PI Pico with Headers and Micro USB Cable

Raspberry PI Pico with Headers and Micro USB Cable - Image 2

Raspberry PI Pico with Headers and Micro USB Cable - Image 3

Raspberry PI Pico with Headers and Micro USB Cable

Sort Description :

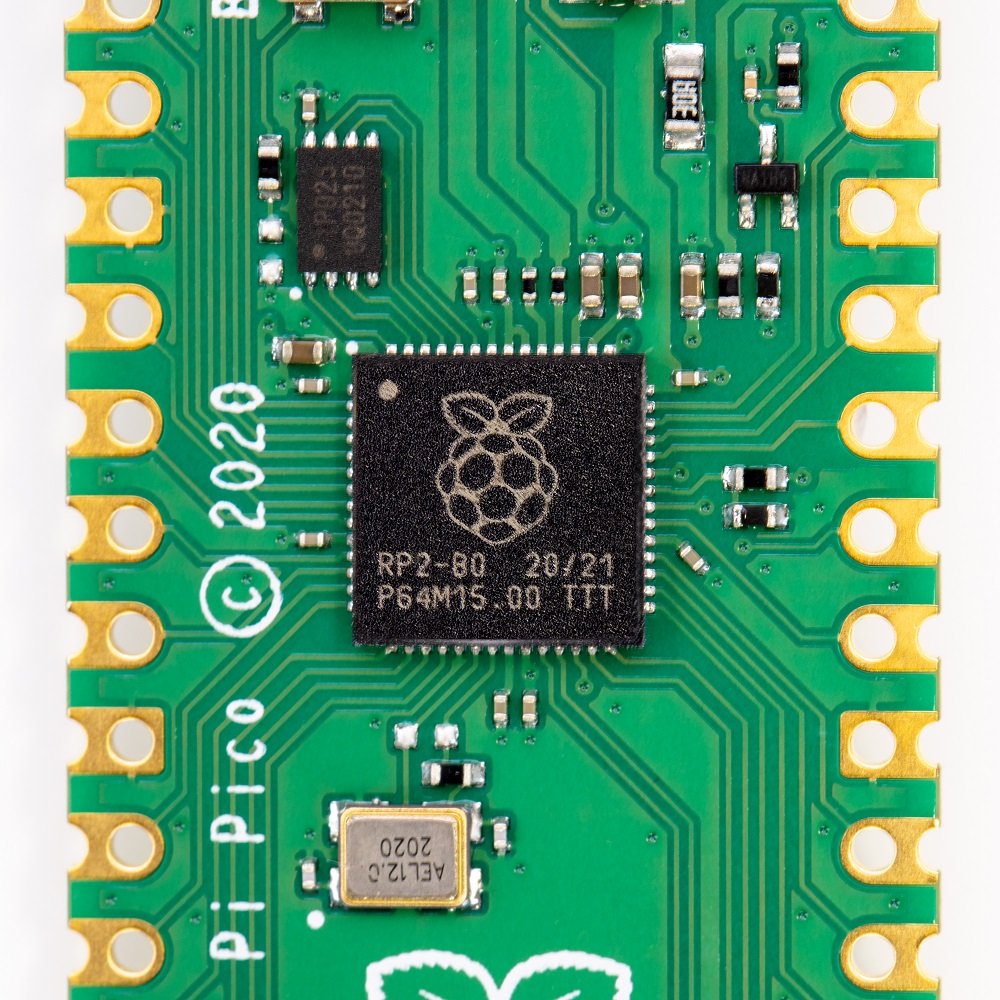

RP2040 microcontroller chip designed by Raspberry Pi
Dual-core Arm Cortex M0+ processor, the flexible clock running up to 133 MHz
264KB of SRAM, and 2MB of onboard Flash memory
26 × multi-function GPIO pins
2 × SPI, 2 × I2C, 2 × UART, 3 × 12-bit ADC, 16 × controllable PWM channels
Onboard temperature sensor

Don’t just let your PICO project on hold because of small header pins and USB cable…! Here we packed the Raspberry Pi PICO with header pins as well as a 50 cm USB cable to provide you with ease to use the board as soon as you get it. Almost one and half-year before Raspberry Pi Foundation had launched a revolutionary update on their Single Board Computer (SBC) Pi 3 and become the most popular Microcontroller board in the community which is known as a Raspberry Pi 4. On the same timeline, the Raspberry Pi Foundation came with a new astonishing SBC named Raspberry Pi Pico.

Introduction Video:

The main highlighted thing about RPi Pico is the Lowest cost and Smallest size development board from Raspberry Pi Foundation ever. On the technical side, it is equipped with RP2040 Microcontroller chip developed by Raspberry Pi Foundation itself. RP2040 is their first dual-core ARM Cortex M0+ processor-based latest small-sized, budget-friendly microcontroller. The RP2040 is supported with both C/C++ and micro-python, meaning that if you’re a beginner and want to learn any of these languages, the Raspberry Pico would be the best product-option to start with.

Features:

RP2040 microcontroller chip designed by Raspberry Pi
Dual-core Arm Cortex M0+ processor, the flexible clock running up to 133 MHz
264KB of SRAM, and 2MB of onboard Flash memory
The castellated module allows soldering directly to carrier boards
USB 1.1 with device and host support
Low-power sleep and dormant modes
Drag-and-drop programming using mass storage over USB
26 × multi-function GPIO pins
2 × SPI, 2 × I2C, 2 × UART, 3 × 12-bit ADC, 16 × controllable PWM channels
Accurate clock and timer on-chip
Onboard temperature sensor
Accelerated floating-point libraries on-chip
8 × Programmable I/O (PIO) state machines for custom peripheral support

For more technical details go through Datasheet in attachments

Package Includes:

1 x Raspberry Pi Pico 1 x Micro USB cable (50cm) 1 x Header Pins

Item Type:	Development Board
Model:	Pi Pico
Microcontroller:	RP2040
Processor	Dual-core Arm Cortex M0+ processor
SRAM	264KB
Flash Memory:	2mb
Shipping Weight 0.18 kg	Shipping Dimensions 8 × 4 × 1 cm
