Infrared IR Sensor Receiver Module for Arduino

₹27.00

Sort Description :
  1. Dimension: 2.5 x 1.5 x 1.5 cm.
  2. Receiving angle: 90 °.
  3. Working voltage: 2.7 ~ 5.5V.
  4. Frequency: 37.9KHz
  5. Receiving range: 18m.
  6. Weight: 4 gm.

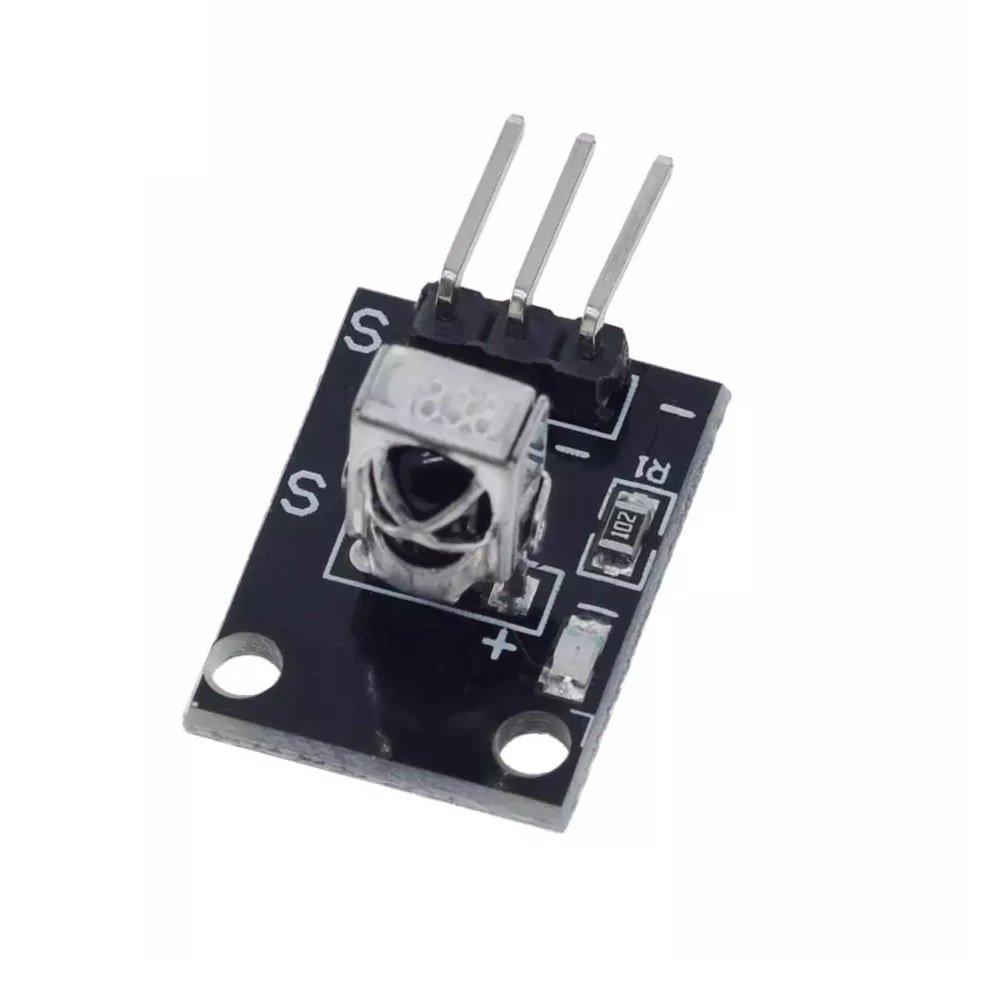

Infrared IR Sensor Receiver Module for Arduino adopts 1838 infrared receiving head. Light resistance, strong electromagnetic interference, built-in infrared dedicated IC, can work under 500 lux light intensity. Widely used in stereo, TV, video machine, disc machine, set-top boxes, digital photo frame; car stereo, remote control toys, satellite receivers, hard disk player, air conditioner, heater; electric fan, lighting and other home appliances.

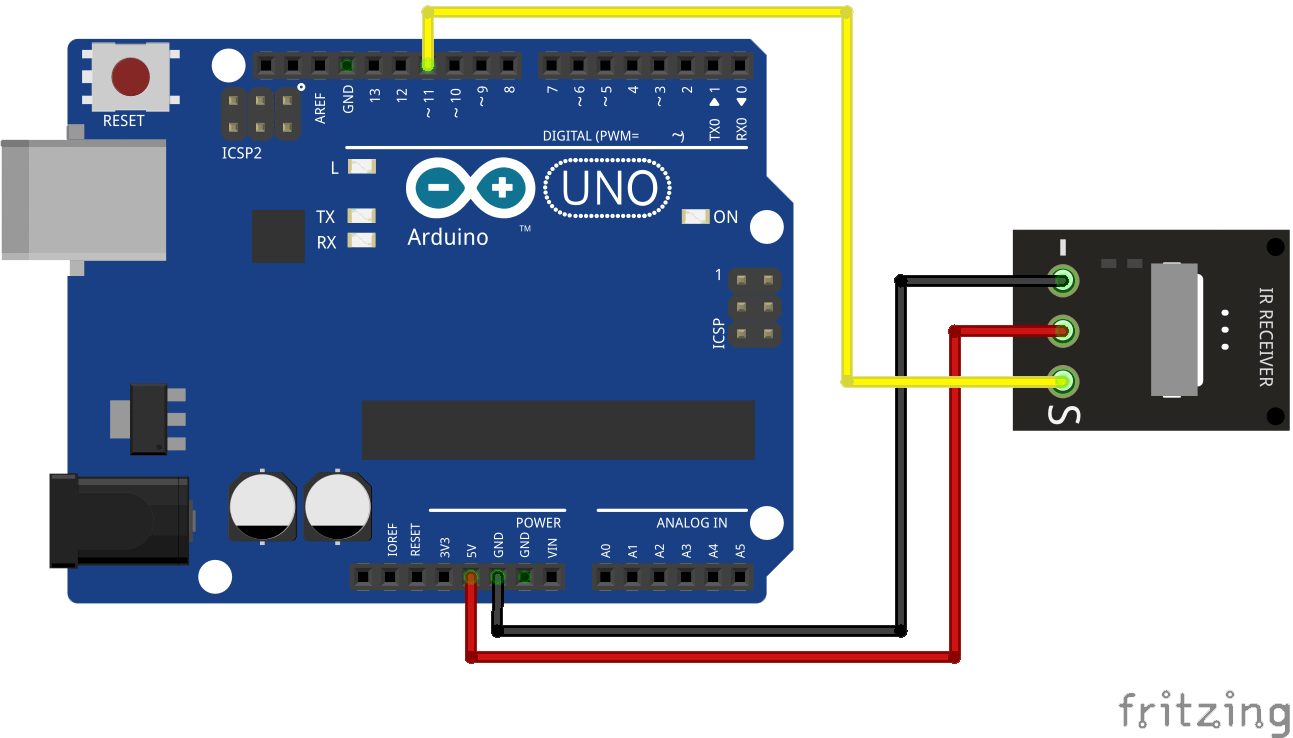

IR Receiver Module is a 38KHz infrared receiver module which is Arduino compatible. It can receive the standard 38KHz modulated remote controller signal. Through programming the Arduino, you can realize decoding of the remote controller signal. Using this item, you can make a universal remote controller with the learning function.

Package Includes :

1 x Infrared IR Sensor Receiver Module for Arduino.
Item Type: Sensor
Model: Sensor Receiver Module
Operating Voltage (V): 2.7 to 5.5
Frequency (kHz) 37.9KHz
Receiving range 18m
Dimensions (L x W x H) mm 25 x 15 x 15
Weight (g): 4
Shipping Weight 0.005 kg Shipping Dimensions 4 × 2 × 1 cm

15 Days Warranty

This item is covered with a standard warranty of 15 days from the time of delivery against manufacturing defects only. This warranty is given for the benefit of Robu customers from any kind of manufacturing defects. Replacement will be done against manufacturing defects.

What voids warranty:

If the product is subject to misuse, tampering, static discharge, accident, water or fire damage, use of chemicals & soldered or altered in any way.
