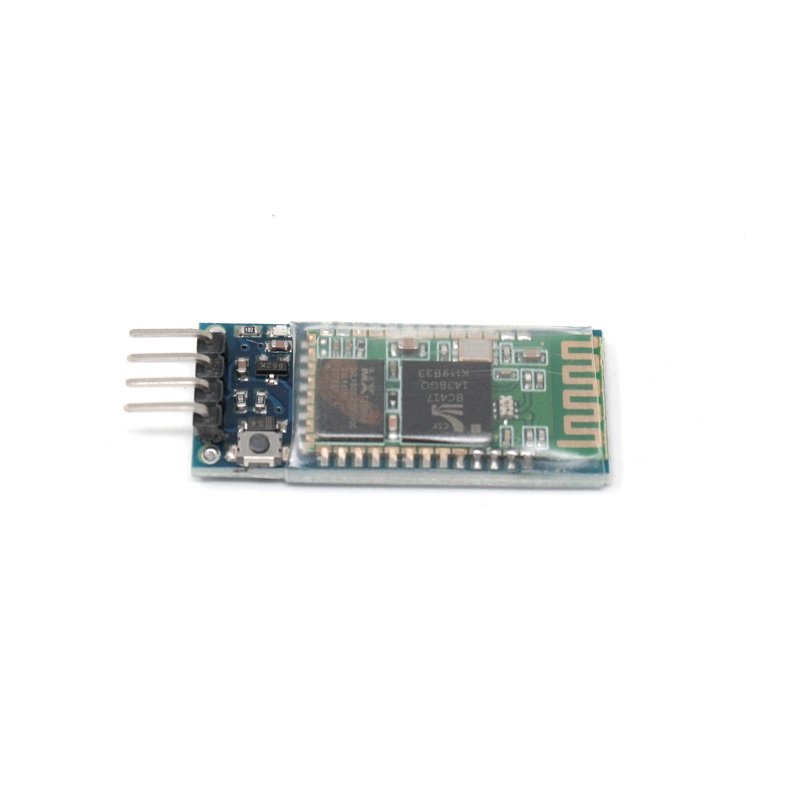

HC-05 4pin Bluetooth Module(Master/Slave) with Button

HC-05 4pin Bluetooth Module(Master/Slave) with Button - Image 2

HC-05 4pin Bluetooth Module(Master/Slave) with Button

₹708.00

Sort Description :

Bluetooth protocol: Bluetooth Specification v2.0+EDR.
Frequency: 2.4GHz ISM band.
Modulation: GFSK(Gaussian Frequency Shift Keying).
Emission power: =4dBm, Class 2.
Sensitivity: =-84dBm at 0.1% BER.

HC-05 4 Pin Wireless Serial Bluetooth Module is a Bluetooth module for use with any microcontroller. It uses the UART protocol to make it easy to send and receive data wirelessly. The HC-05 4pin Bluetooth Module(Master/Slave) with Button can be used as a Master as well as a slave device for transmitter and receiver. This means that it can connect to most phones and computers with Bluetooth aw well as to another slave device such as keyboards and other HC-06 modules. To connect with other slave devices a master module would be necessary.

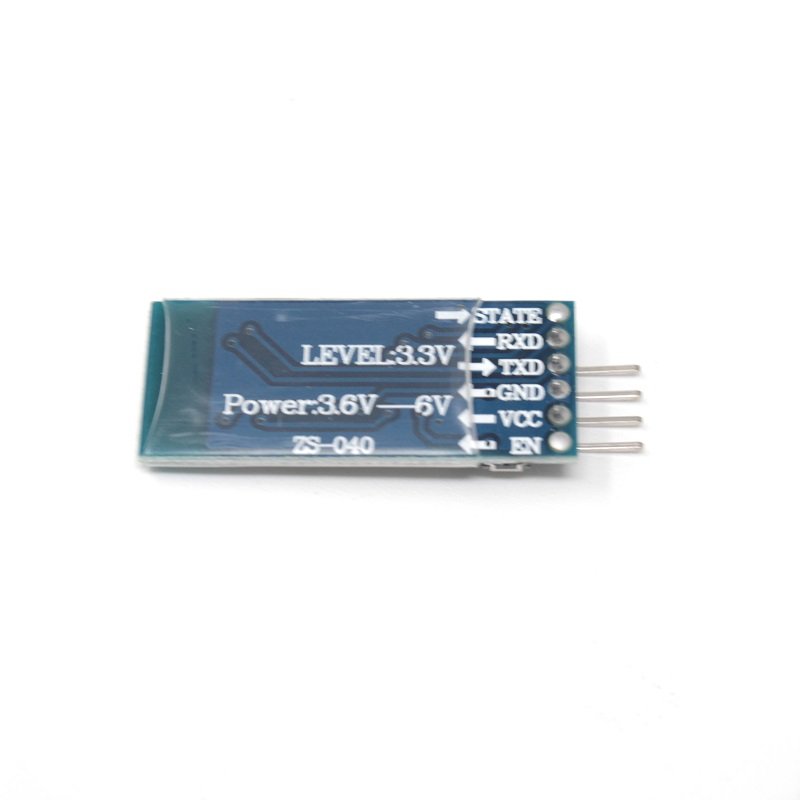

Pin Description:

SN	PIN	Description
1	RXD	Receive Serial Data. Every serial data given to this pin will be broadcasted via Bluetooth
2	TXD	Transmits Serial Data. Everything received via Bluetooth will be given out by this pin as serial data.
3	VCC	Powers the module. Connect to +5V Supply voltage
4	GND	Ground pin of module, connect to system ground.
5	LED	Indicates the status of Module Blink once in 2 sec: Module has entered Command Mode Repeated Blinking: Waiting for connection in Data Mode Blink twice in 1 sec: Connection successful in Data Mode
6	Button	Used to control the Key/Enable pin to toggle between Data and command Mode

HC-05 Default Settings:

Default Bluetooth Name: “HC-05”
Default Password: 1234 or 0000
Default Communication: Slave
Default Mode: Data Mode
Data Mode Baud Rate: 9600, 8, N, 1
Command Mode Baud Rate: 38400, 8, N, 1

Applications:

Embedded Projects.
Industrial Applications.
Computer and Portable Devices.
GPS receiver.

Features:

Working current: matching for 30 mA, matching the communication for 8 mA.
Dormancy current: no dormancy.
Used for a GPS navigation system, water, and electricity gas meter reading system.
With the computer and Bluetooth adapter, PDA, seamless connection equipment.
Bluetooth module HC-08 Master and slave Two in one module.
Use the CSR mainstream Bluetooth chip, Bluetooth V2.0 protocol standards.
Potter default rate of 9600, the user can be set up.
Bluetooth protocol: Bluetooth Specification v2.0+EDR
Speed: Asynchronous: 2.1Mbps(Max) / 160 kbps, Synchronous: 1Mbps/1Mbps.
Security: Authentication and encryption.
Profiles: Bluetooth serial port.

Package Includes:

1 x HC-05 4pin Bluetooth Module(Master+Slave) with Button

Item Type:	HC Series Module
Switch/Button	Yes
Max. Operating Range (m):	10
Operating Frequency (Hz):	2.4GHz ISM band
Modulation Type:	GFSK (Gaussian Frequency Shift Keying)
Emission power	4dBm, Class 2
Sensitivity (dBm):	-84dBm at 0.1% BER
Length (mm):	43
Width (mm):	16.5
Height (mm)	7
Weight (g):	5
Shipping Weight 0.01 kg	Shipping Dimensions 4 × 4 × 1 cm
